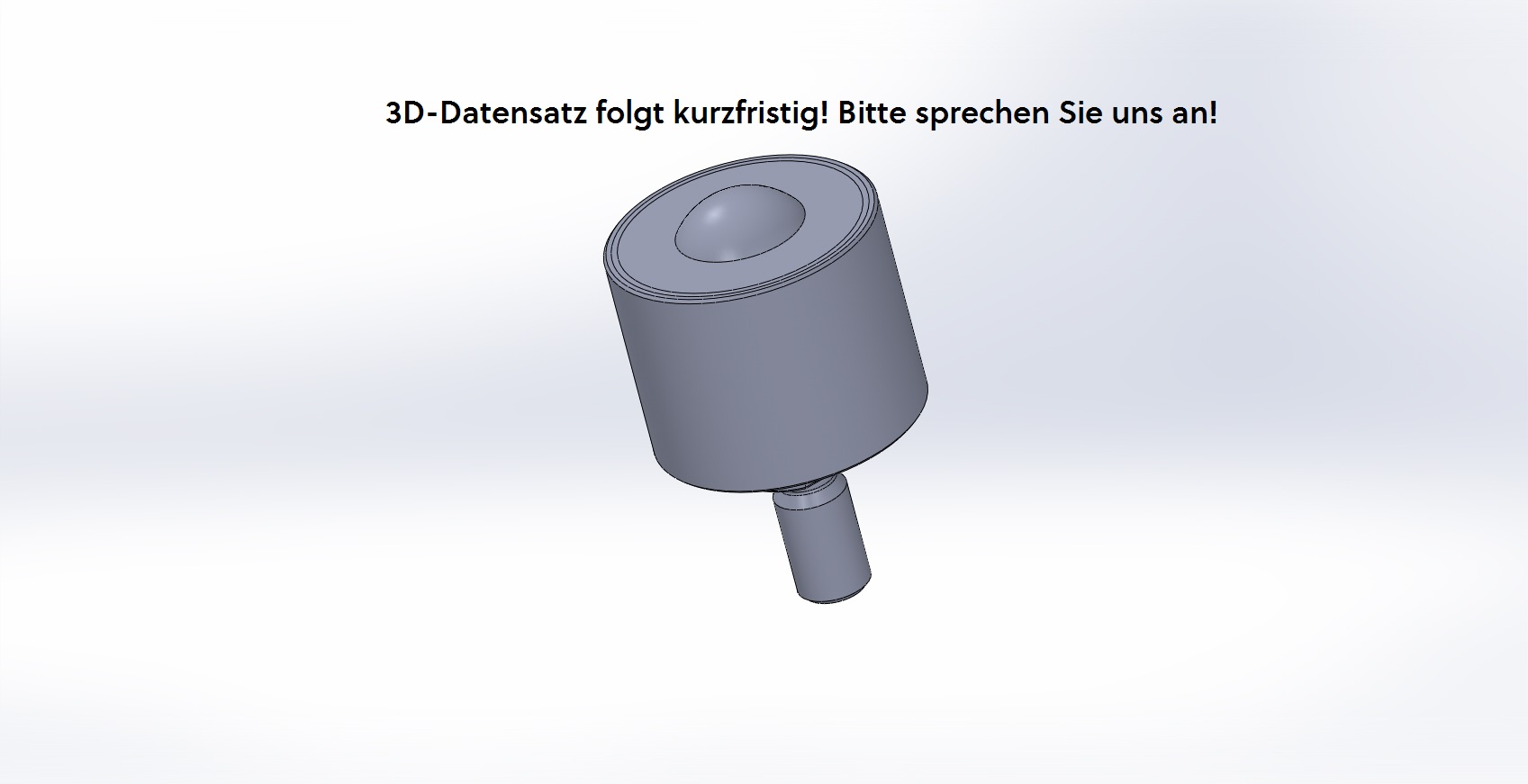

Heavy-duty ball caster with threaded pin

Heavy-duty ball caster with threaded pin
Heavy-duty ball caster with threaded pin cut drawing
Heavy-duty ball caster with threaded pin front view
Designation Material of bearing ball Dimensioning Sealing felt Load bearing capacity (kg)
Ø D1(mm) Ø D2(mm) H1(mm) H2(mm) H3(mm) SW (mm) Ø D6(mm) L3(mm)
Tolerances +/- 0.1 +/- 0.1 +/- 0.1 +/- 0.2
Solid ball caster / ball transfer units without flange and with threaded pin, gunmetal-finished
025.504 Tool steel 25.400 44.5 72.4 48.3 5.6 19 M12 24.1 yes 150
025.504b 25.400 50.8 77.0 51.3 6.1 19 M12 25.7 yes 350
038.504 38.100 60.0 114.3 73.5 13.0 30 M20 40.8 yes 1.000
050.504 50.800 101.6 163.3 113.4 14.3 36 M24 50 yes 2.000

Design and construction

This Schulz ball caster / ball transfer unit consists of a casing with threaded pin, a top cover and a bearing cap as solid turned parts, a bearing ball and several support balls.

Dimensions

The spacing is calculated by dividing the shortest edge length of the object to be transported by 3.5.

Materials

Casing: gunmetal-finished steel, black
Top cover: gunmetal-finished steel, black
Bearing cap: tempered steel
Support balls: Tool steel (tempered), Stainless steel (tempered)
Bearing ball: Tool steel (tempered), Stainless steel (tempered)

Operational conditions

Temperature range from -30°C to +100°C
Conveyance velocity of up to 2,0 m/s.
Dynamic load rating up to max. 2.000 kg.

Datenblatt Kugelrolle

Datenblatt Deutsch

Datenblatt Kugelrolle

Datasheet English

Datenblatt Kugelrolle

Fiche technique français

Datenblatt Kugelrolle

Hoja de datos español

Subject to technical changes and errors excepted.
