Heavy-duty ball caster without collar
| Designation | Material of bearing ball | Dimensioning | sealing felt | Load bearing capacity (kg) |
|||
| Ø D1 (mm) | Ø D2 (mm) | H1 (mm) | H3 (mm) | ||||
| Tolerances | – | – | +/- 0.1 | +/- 0.1 | +/- 0.1 | – | – |
Heavy-dute ball caster without collar, gunmetal-finished |
|||||||
| 025.503 | Tool steel | 25.400 | 44.5 | 41.4 | 5.6 | yes | 150 |
| 025.503b | 25.400 | 50.8 | 45.5 | 6.1 | yes | 350 | |
| 038.503 | 38.100 | 60 | 61.5 | 13 | yes | 1.000 | |
| 050.503 | 50.800 | 101.6 | 98.4 | 14.3 | yes | 2.000 | |
| 076.503 | 76.200 | 160 | 145 | 21 | yes | 4.500 | |
Design and construction
This Schulz ball caster / ball transfer unit consists of a casing, a top cover and a bearing cap as solid turned parts, a bearing ball and several support balls.
Dimensions
The spacing is calculated by dividing the shortest edge length of the object to be transported by 3.5.
Materials
Casing: Steel galvanized, Stainless Steel (tempered)
Top cover: Steel galvanized, Stainless Steel
Support balls: Tool steel (tempered), Stainless steel (tempered)
Bearing ball: Tool steel (tempered), Stainless steel (tempered), Plastic
Operational conditions
Temperature range from -30°C to +100°C
Conveyance velocity of up to 2,0 m/s.
Dynamic load rating up to max. 2.000 kg.
Datenblatt Deutsch
Datasheet English
Fiche technique français
Hoja de datos español

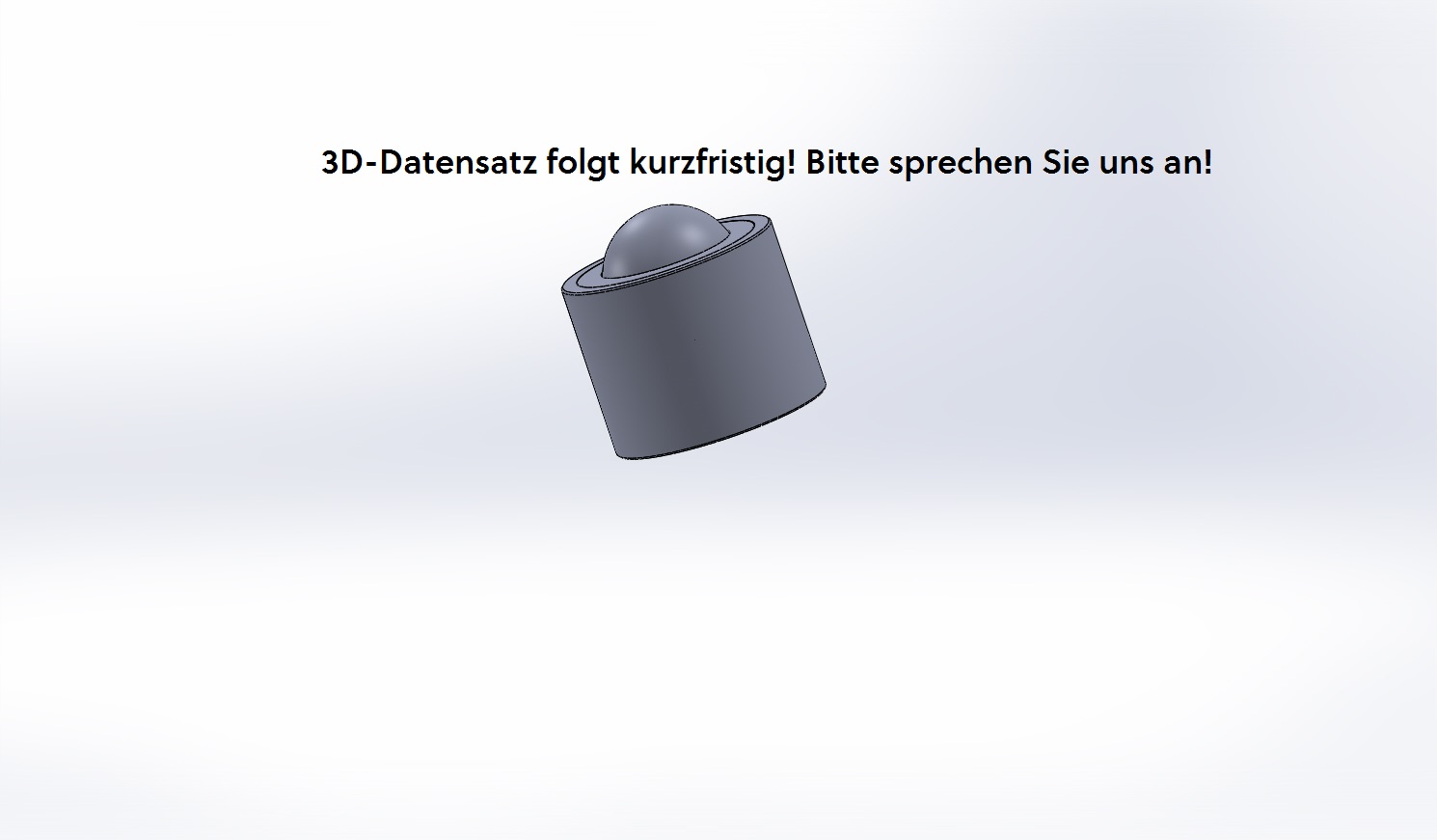

Download “3D-PDF-Darstellung-025-050.503.pdf” 3D-PDF-Darstellung-025-050.503.pdf – Downloaded 2440 times – 164.84 KB Download “3D-Datensatz-025.503.jpg” 3D-Datensatz-025.503.jpg – Downloaded 2436 times – 75.35 KB Download “3D-Datensatz-038.503.igs” 3D-Datensatz-038.503.igs – Downloaded 2618 times – 93.05 KB Download “3D-Datensatz-025.503b-IGES.igs” 3D-Datensatz-025.503b-IGES.igs – Downloaded 2254 times – 1.01 KB Download “3D-Datensatz-050.503.jpg” 3D-Datensatz-050.503.jpg – Downloaded 2432 times – 75.35 KB
In order to display and read the 3D PDF, you will need Acrobat Reader with an activated 3D function!
