| Designation | Material of bearing ball | Dimensioning | Sealing felt | Load bearing capacity (kg) | ||||||
| Ø D1 (mm) | Ø D2 (mm) | H1 (mm) | H2 (mm) | H3 (mm) | Ø D6 | L3 (mm) | ||||
| Tolerances | – | – | – | +/- 0.1 | +/- 0.1 | +/- 0.1 | +/- 0.2 | +/- 0.5 | – | – |
Solid ball caster / ball transfer units without collar, with threaded pin, galvanised |
||||||||||
| 006.400 | Tool steel | 6.350 | 13 | 25.5 | 10.5 | 2 | M6 | 15 | no | 30 |
| 012.400 | 12.700 | 20.6 | 35.8 | 19.6 | 3.5 | M8 | 16.2 | no | 80 | |
| 015.400 | 15.875 | 24 | 46.1 | 21 | 6 | M8 | 25 | no | 100 | |
| 030.400 | 30.000 | 45 | 62 | 37 | 5 | M12 | 25 | yes | 350 | |
| 012.410 | Plastic | 12.700 | 20.6 | 35.8 | 19.6 | 3.5 | M8 | 16.2 | no | 50 |
| 015.410 | 15.875 | 24 | 46.1 | 21 | 6 | M8 | 25 | no | 50 | |
| 015.420 | Stainless steel | 15.875 | 24 | 46.1 | 21 | 6 | M8 | 25 | no | 100 |
Solid stainless steel ball caster / ball transfer units without collar, with threaded pin |
||||||||||
| 006.430 | Stainless steel | 6.350 | 13 | 25.5 | 10.5 | 2 | M6 | 15 | no | 30 |
| 008.430 | 8.000 | 15 | 27.5 | 12.5 | 2 | M6 | 15 | no | 50 | |
| 015.430 | 15.875 | 24 | 41 | 21 | 6 | M10 | 20 | no | 100 | |

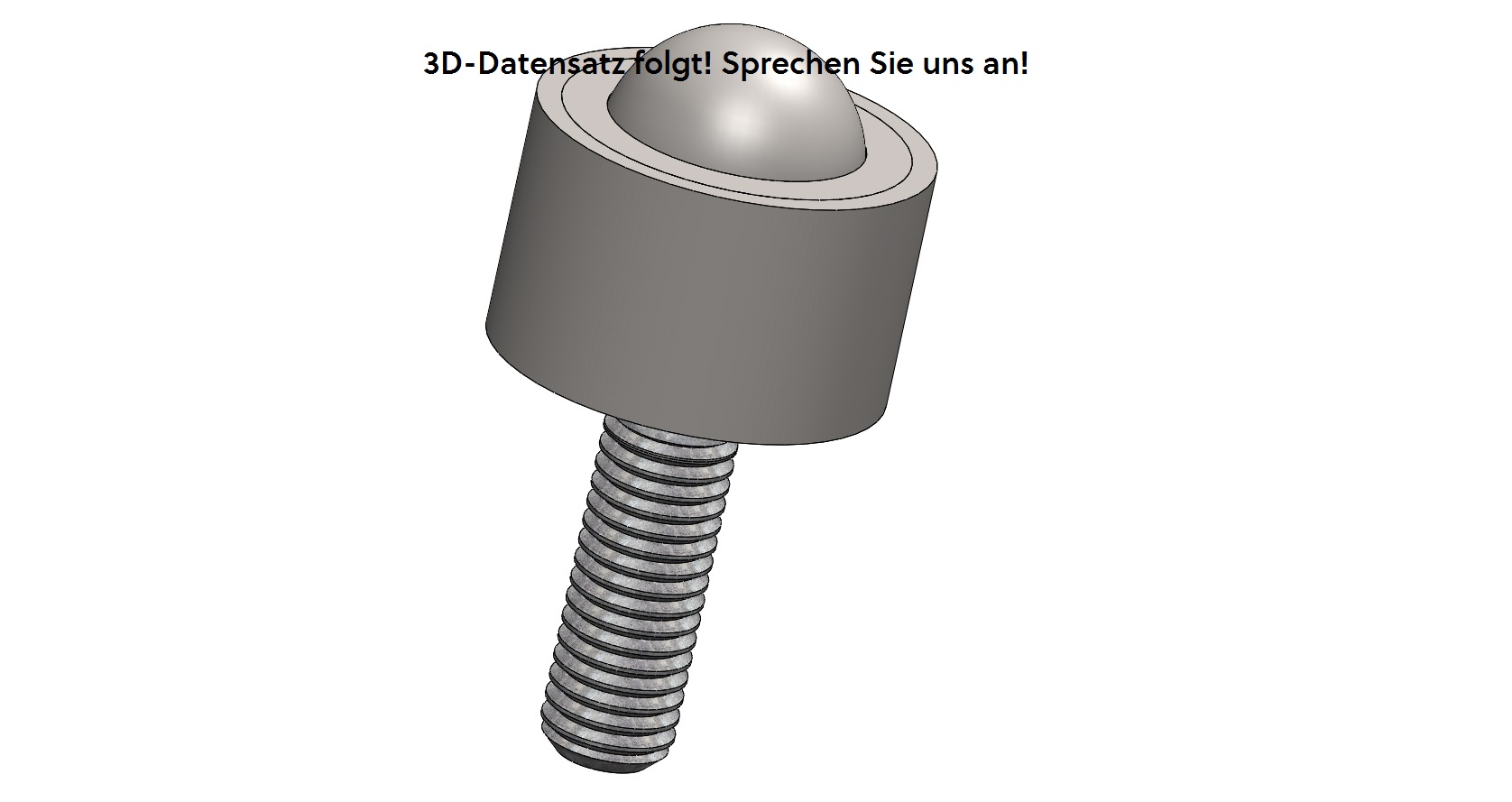

Solid ball caster without collar, with threaded pin
Solid ball caster without collar, with threaded pin
Design and construction
This Schulz ball caster consists of a casing with threaded pin and a top cover as solid turned parts, a bearing ball and several support balls.
Dimensions
The spacing is calculated by dividing the shortest edge length of the object to be transported by 3.5.
Materials
Casing: galvanised steel tempered, Stainless steel tempered
Deckel: galvanised steel, Stainless steel
Support balls: Tool steel (tempered), Stainless steel (tempered)
Bearing ball: Tool steel (tempered), Stainless steel (tempered), Plastic
Operational conditions
Temperature range from -30°C to +100°C (up +30°C with plastic bearing ball)
Conveyance velocity of up to 1,5 m/s.
Dynamic load rating up to max. 350 kg.
Datenblatt Deutsch
Datasheet English
Fiche technique français
Hoja de datos español
Download “3D-PDF-Darstellung-006-030.4x0.pdf” 3D-PDF-Darstellung-006-030.4x0.pdf – Downloaded 2395 times – 92.38 KB Download “Zeichnung-Drawing-006.430-049-2013.pdf” Zeichnung-Drawing-006.430-049-2013.pdf – Downloaded 2921 times – 82.21 KB Download “Zeichnung-Drawing-012.400-045-2014.pdf” Zeichnung-Drawing-012.400-045-2014.pdf – Downloaded 3096 times – 87.22 KB Download “Zeichnung-Drawing-015.400-061-2016.pdf” Zeichnung-Drawing-015.400-061-2016.pdf – Downloaded 2416 times – 87.95 KB Download “3D-Datensatz-006.4x0.igs” 3D-Datensatz-006.4x0.igs – Downloaded 2553 times – 155.67 KB Download “3D-Datensatz-008.4x0.igs” 3D-Datensatz-008.4x0.igs – Downloaded 2396 times – 252.01 KB Download “3D-Datensatz-012.4x0.igs” 3D-Datensatz-012.4x0.igs – Downloaded 2567 times – 221.58 KB Download “3D-Datensatz-015.4x0.igs” 3D-Datensatz-015.4x0.igs – Downloaded 2445 times – 86.56 KB Download “3D-Datensatz-030.4x0.jpg” 3D-Datensatz-030.4x0.jpg – Downloaded 2383 times – 106.36 KB Download “030.400-CAD-IGES.igs” 030.400-CAD-IGES.igs – Downloaded 2221 times – 1,005.00 B
In order to display and read the 3D PDF, you will need Acrobat Reader with an activated 3D function! Subject to technical changes and errors excepted!
