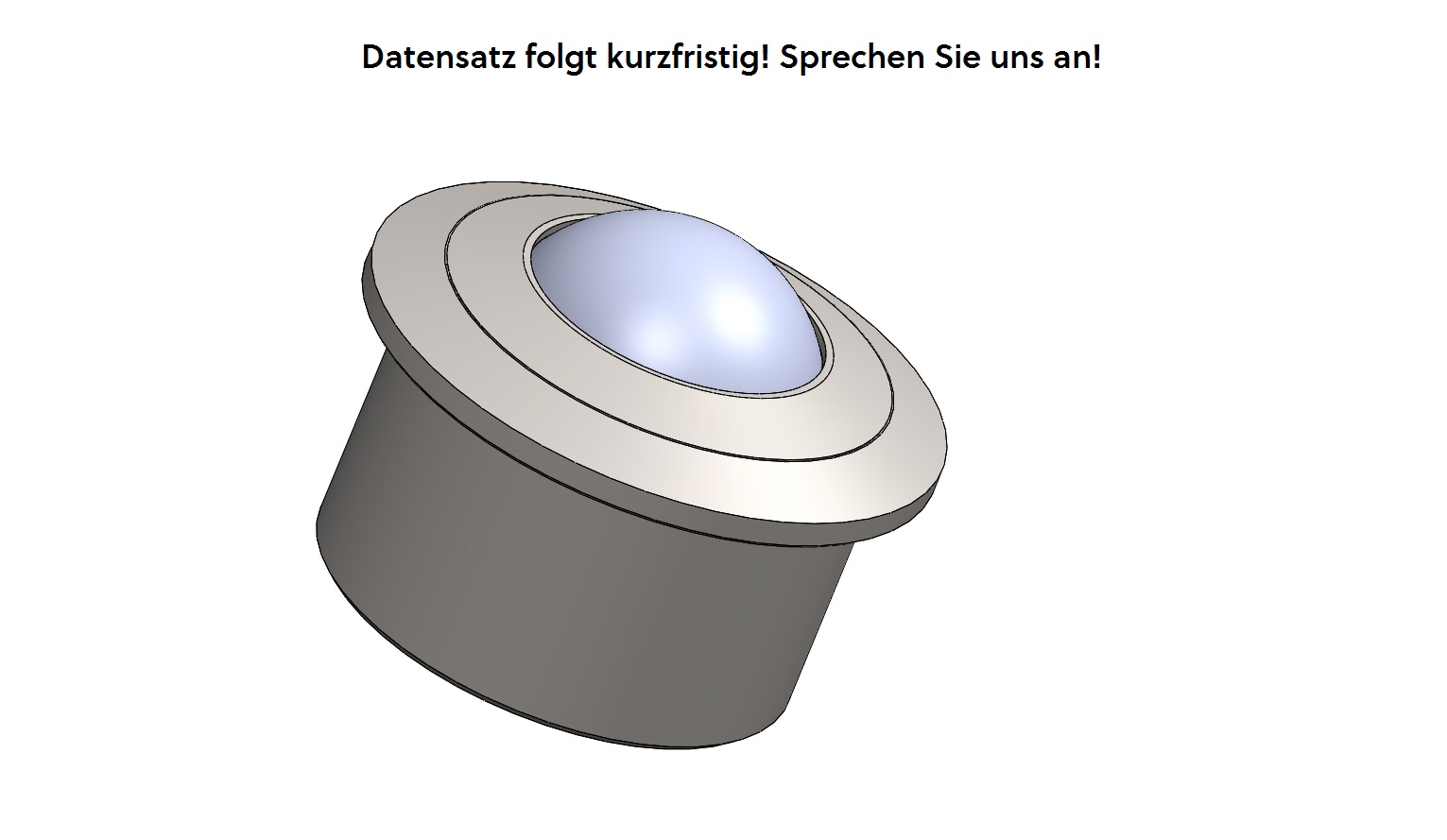

Solid ball caster with collar
Air cargo units
Solid ball caster with collar
| Designation | Material of bearing ball | Dimensioning | Sealing felt | Load bearing capacity (kg) | |||||
| Ø D1 (mm) | Ø D2 (mm) | Ø D3 (mm) | H1 (mm) | H2 (mm) | H3 (mm) | ||||
| Tolerances | – | – | +/- 0.1 | +/- 0.1 | +/- 0.1 | +/- 0.1 | – | – | – |
Solid ball caster / ball transfer units and collar, galvanised |
|||||||||
| 015.100* | Tool steel | 15.875 | 24.0 | 31.0 | 21.0 | 9.5 | 3.0 | yes / no | 100 |
| 015.102 | 15.875 | 24.0 | 31.0 | 20.5 | 9.5 | 4.5 | yes / no | 100 | |
| 022.100 | 22.225 | 36.0 | 45.0 | 30.5 | 10.0 | 4.5 | yes | 240 | |
| 030.100 | 30.000 | 45.0 | 55.0 | 37.0 | 14.0 | 5.5 | yes | 350 | |
| 045.100 | 44.500 | 62.0 | 75.0 | 53.5 | 19.0 | 9.0 | yes | 800 | |
| 060.100 | 57.100 | 100.0 | 117.0 | 77.5 | 29.5 | 16.0 | yes | 1.500 | |
| 015.110* | Plastic | 15.875 | 24.0 | 31.0 | 21.0 | 9.5 | 3.0 | yes / no | 25 |
| 015.112 | 15.875 | 24.0 | 31.0 | 20.5 | 9.5 | 4.5 | yes / no | 25 | |
| 022.110 | 22.225 | 36.0 | 45.0 | 30.5 | 10.0 | 4.5 | yes | 50 | |
| 030.110 | 30.000 | 45.0 | 55.0 | 37.0 | 14.0 | 5.5 | yes | 100 | |
| 015.120* | Stainless steel | 15.875 | 24.0 | 31.0 | 21.0 | 9.5 | 3.0 | yes / no | 100 |
| 015.122 | 15.875 | 24.0 | 31.0 | 20.5 | 9.5 | 4.5 | yes / no | 100 | |
| 022.120 | 22.225 | 36.0 | 45.0 | 30.5 | 10.0 | 4.5 | yes | 240 | |
| 030.120 | 30.000 | 45.0 | 55.0 | 37.0 | 14.0 | 5.5 | yes | 350 | |
| 045.120 | 44.500 | 62.0 | 75.0 | 53.5 | 19.0 | 9.0 | yes | 800 | |
Solid stainless steel ball caster / ball transfer units with collar |
|||||||||
| 015.130* | Stainless steel | 15.875 | 24.0 | 31.0 | 21.0 | 9.5 | 3.0 | yes / no | 100 |
| 015.132 | 15.875 | 24.0 | 31.0 | 20.5 | 9.5 | 4.5 | yes / no | 100 | |
| 022.130 | 22.225 | 36.0 | 45.0 | 30.5 | 10.0 | 4.5 | yes | 240 | |
| 030.130 | 30.000 | 45.0 | 55.0 | 37.0 | 14.0 | 5.5 | yes | 350 | |
Design and construction
This Schulz ball caster / ball transfer unit consists of a casing and top cover as solid turned parts, a bearing ball and several support balls.
Dimensions
The spacing is calculated by dividing the shortest edge length of the object to be transported by 3.5.
Materials
Casing: tempered, galvanised steel, tempered stainless steel
Lid: galvanised steel, stainless steel
Ball cup: tempered steel, tempered stainless steel
Support balls: tool steel (tempered), stainless steel (tempered)
Bearing ball: tool steel (tempered), stainless steel (tempered), plastic
Operational conditions
Temperature range from -30°C to +100°C (up to +30°C with plastic bearing ball)
Conveyance velocity of up to 1.5 m/s.
Dynamic load rating up to max. 1.500 kg.
Datenblatt Deutsch
Datasheet English
Fiche technique français
Hoja de datos español
Download “3D-PDF-Darstellung-015-060.1xxx.pdf” 3D-PDF-Darstellung-015-060.1xxx.pdf – Downloaded 2446 times – 92.57 KB Download “Zeichnung-Drawing-015.1xxx-021-2014.pdf” Zeichnung-Drawing-015.1xxx-021-2014.pdf – Downloaded 2340 times – 82.60 KB Download “Baugruppe-015.102-463-2017-Index0.pdf” Baugruppe-015.102-463-2017-Index0.pdf – Downloaded 2127 times – 81.08 KB Download “Zeichnung-Drawing-022.1xxx-112-2016.pdf” Zeichnung-Drawing-022.1xxx-112-2016.pdf – Downloaded 2389 times – 84.71 KB Download “Zeichnung-Drawing-030.1xxx-54-2013.pdf” Zeichnung-Drawing-030.1xxx-54-2013.pdf – Downloaded 2341 times – 83.60 KB Download “Zeichnung-Drawing-045.1xx-113-2016.pdf” Zeichnung-Drawing-045.1xx-113-2016.pdf – Downloaded 2419 times – 82.11 KB Download “Zeichnung-Drawing-060.1xx-057-2013.pdf” Zeichnung-Drawing-060.1xx-057-2013.pdf – Downloaded 2339 times – 73.30 KB Download “3D-Datensatz-015.1xxx.igs” 3D-Datensatz-015.1xxx.igs – Downloaded 2450 times – 186.42 KB Download “3D-Datensatz-022.1xx.igs” 3D-Datensatz-022.1xx.igs – Downloaded 2355 times – 498.41 KB Download “3D-Datensatz-030.1xx.igs” 3D-Datensatz-030.1xx.igs – Downloaded 2438 times – 110.43 KB Download “3D-Datensatz-045.100.jpg” 3D-Datensatz-045.100.jpg – Downloaded 2544 times – 91.35 KB Download “3D-Datensatz-060.100.jpg” 3D-Datensatz-060.100.jpg – Downloaded 2311 times – 91.35 KB
In order to display and read the 3D PDF, you will need Acrobat Reader with an activated 3D function! Subject to technical changes and errors excepted!
